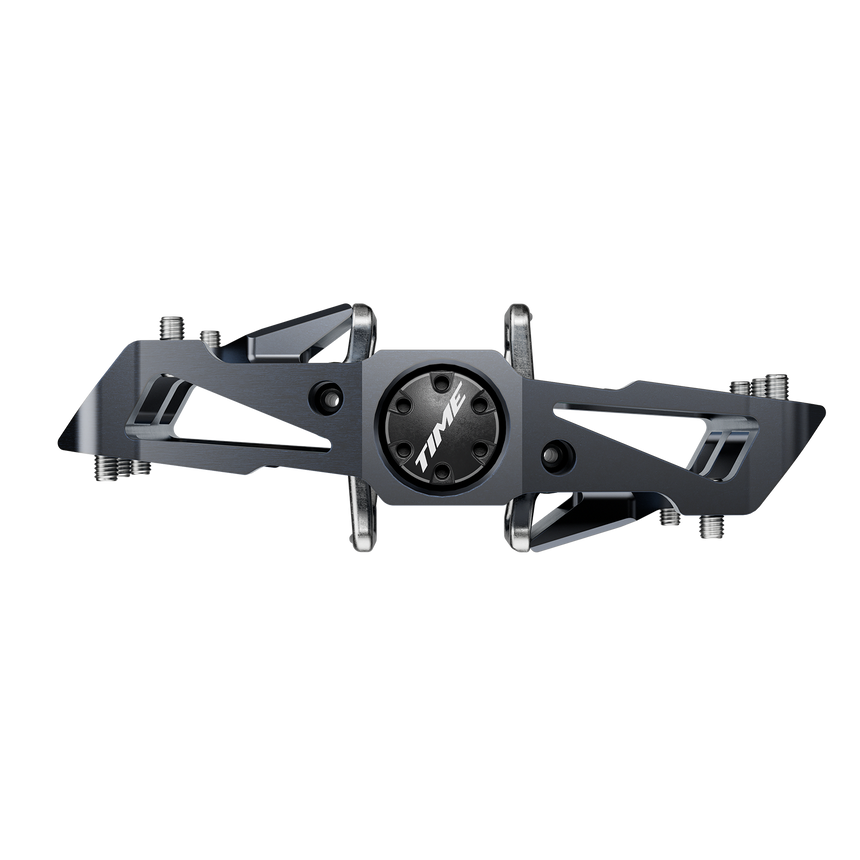

TIME Sport  |  SKU: 00.6718.046.000

XYSTO

$200.00

Expected arrival mid-May

Be the first to get Xysto

Sign up to be notified as soon as this product is available.

Description

keyboard_arrow_down

Inspired by the xisto stone villages and trails found near our facility in Portugal, the TIME XYSTO (pronounced 'She-stoh') is a robust full-bodied pedal system designed for the modern DH, Enduro, and aggressive off-road rider. Customizable grip pin placement allows the pedal to adapt to the rider, not the other way around. Our proven ATAC Technology clears dirt and debris upon entry and allows for natural foot movement.

Specifications

keyboard_arrow_down
  • Axle Component
    Steel axle
  • Bearings
    Steel
  • Body component
    6106 T6 - Aluminum
  • Cleats
    ATAC cleats
  • Pedal stack height
    18.3mm
  • Angular freedom
    5° to -5°
  • Contact surface area
    n/a
  • Distance pedal spindle / crank arm
    57mm
  • Lateral freedom
    2.5 mm or -2.5 mm
  • Release angle
    10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
  • Tension
    Micro adjustment
  • Threading
    9/16 - 20 inch
  • Platform Size
    X-Large (79 X 94 mm)
  • Color (Pedal)
    Dark Grey
  • Accessories
    ATAC CLEATS AND 20 GRIP SCREWS
  • Intended use
    Gravity
  • Power Measurement
    Not Compatible
  • Weight (per pedal)
    226g

Features

keyboard_arrow_down
  • Extra-large 79x94mm platform provides additional support and control
  • Asymmetrical design fits the natural shape of your sole
  • Customizable grip pin placement
  • Adjustable release tension
  • ATAC design clears mud and debris every time you clip in
  • Easy engagement and performance in all condition
  • Model ID: PD-XYS-A1
  • Dark Grey alloy anodized platform
  • 57mm spindle length
  • 226g per pedal
  • 13/17° cleats included with pedals. Optional Cleat is the 10 degree Easy Cleat (sold separately)
  • Xysto pedals ridden to victory by Erice Van Leuven at 2024 UCI Junior World DH Championships
  • Made in-house in our Coimbra, Portugal facility
  • Model ID: PD-XYS-A1

Media Highlights

keyboard_arrow_down

Media Highlights:

  • “Developed in collaboration with athletes such as Rémy Métailler, Mitch Ropelato and Brayden Bringhurst, and with a prototype already crowned UCI world champion in 2024, the XYSTO pedals are consolidated as a high-performance option for those who demand the best in every MTB ride.” - ESMTB

  •  “The ATAC name is widely recognized in cycling, and I have spent countless hours on the platform. From mountain to gravel, cyclocross, and even fixed-gear, TIME pedals have won the hearts of many riders for their predictable release, positive pedaling platform, and industry-leading mud clearance.“ - Bike Mag–Deven McCoy

  •  “Time describes the pedals as being "full-bodied" and despite being made in Portugal, the name has nothing to do with wine. Xisto refers to the type of rock found in the mountains in that region and is pronounced "Shis-toe", or "Schist" in English.“-  Pinkbike–Matt Beer

  •  “The ATAC mechanism promises good self-cleaning and can be combined with different cleats.“ - BIKE–Stefan Frey

  •  “The world downhill champion, Valentina Höll, competes with Time Xysto pedals.“ - BIKE Spain–José Luis Arce

  •   “Designed for proper gravity riding and DH racing, the Time Xysto is a lightweight but large platform clipless pedal with 5 asymmetric traction pins per side for plenty of grip, whether clipped in or not.” - Bikerumor–Cory Benson
